OAuth 2

Important!
Never provide your access_token, refresh_token or client_secret to a web browser or other end-user agent. Instead, maintain a separate session and persist this data in a location accessible only by your application (e.g. do not store the access_token in a cookie). Contact api-support@sparkapi.com for further guidance.
Confused?
Check out our OpenID+OAuth 2 Hybrid Flow example using just your web browser and curl or, if you prefer PHP, the 15 minute PHP app.
If you are not sure which authentication method to use, please read the Overview page.

All requests, including requests after the OAuth 2 authorization has been granted, must be made using HTTPS.

The Spark API currently supports draft 10 of the OAuth 2 specification. Note that some developers will have a "single session" OAuth 2 key with an access_token and refresh_token already provided to them. Developers with these keys can skip steps one and two, starting instead at Requesting Data.

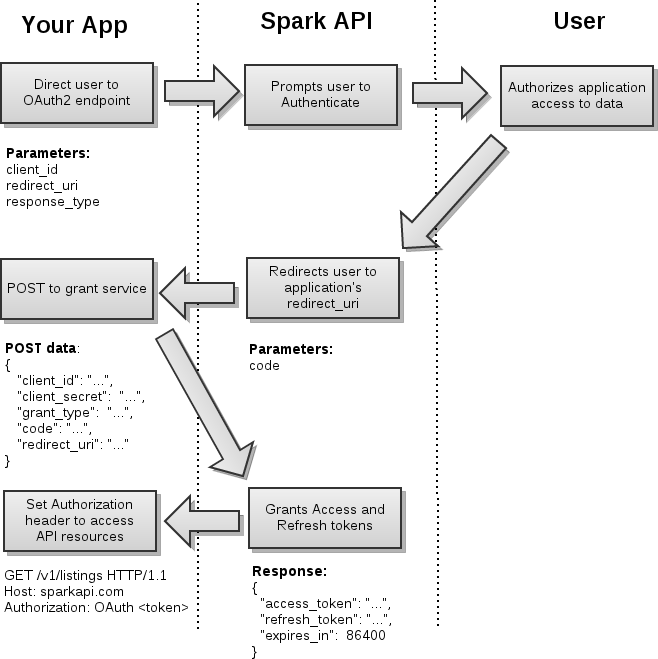

The typical OAuth 2 flow with Spark API can be broken down into four steps:

  1. Obtaining User Authorization
  2. Token Exchange
  3. Requesting Data
  4. Refreshing Expired Sessions

Flexmls_api_oauth2_flow

Obtaining User Authorization

See also section 3 of the OAuth 2 spec.

Obtaining user authorization requires you to redirect the end-user to the appropriate endpoint with the required parameters provided. Once they have authorized your application, they will be redirected back to your redirect_uri with the access code provided in the URI.

API Endpoints:

SESSION ROLE OAuth 2 endpoint URI
IDX https://sparkplatform.com/oauth2
VOW https://sparkplatform.com/auth/vow/portalname

The portalname parameter must be replaced with the agent's portal name, e.g. a portal with the name MyPortal would have an endpoint URI of https://sparkplatform.com/auth/vow/myportal.
Private https://sparkplatform.com/oauth2

Parameters:

  • client_id : your unique client key, provided to you by FBS.
  • redirect_uri: the URI that you'd like the OAuth endpoint to redirect to after successfully authenticating the user. The URI you provide to us must match the URI we have on record for your key.
  • response_type : this should always be set to code .
  • state : an optional parameter that will be returned to your redirect_uri.

Example: Redirecting an Agent to the Endpoint

To initiate the user authorization flow, assemble the appropriate URI parameters in your client and redirect the user to our endpoint. Note that, from there, the user experience will be out of your hands until the end user is redirected to your redirect_uri
  https://sparkplatform.com/oauth2?response_type=code&client_id=[client_id]&redirect_uri=[redirect_uri]

Example: Successful OAuth 2 Authorization

When the end user authorizes your application to access their data, the endpoint redirects the user to your callback specified by your redirect_uri parameter. Attached to this URI is the code parameter, which is necessary to complete the grant request later. At this point, user experience will be back in your control.
  https://my.site.com/callback?code=[access_code]

Example: Unsuccessful OAuth 2 Authorization

If an error occurs in the authorization process, the code parameter will be omitted. Be prepared to handle the parameters error and error_description in these events.
  https://my.site.com/callback?error=redirect_uri_mismatch&error_description=Parameter+redirect_uri+does+not+match+registered+URI

Token Exchange

See also section 4.1.1 of the OAuth 2 spec.

After the end user has successfully authorized your application, you must exchange your access code for an access_token by POSTing the the following data to the https://sparkapi.com/v1/oauth2/grant resource:

Sample POST Request Body

{
  "client_id": "[client_id]",
  "client_secret":  "[client_secret]",
  "grant_type": "authorization_code",
  "code": "[code]",
  "redirect_uri": "[redirect_uri]"
}
Attribute Description
client_id This is your OAuth client ID provided by FBS.
client_secret This is your OAuth client secret provided by FBS.
grant_type This is always set to authorization_code .
code This is the value of the code obtained in step 1.
redirect_uri The value of the URI to which the user will be redirected upon completion. The domain must match that which is registered with FBS. (We encourage you to use HTTPS for your redirect URI.)

Sample Successful Response Body: HTTP status 200 (see also section 3.1 of the OAuth 2 spec)

{
  "access_token": "[access_token]",
  "refresh_token": "[refresh_token]",
  "expires_in":  86400
}

Sample Failed Response Body: HTTP status > 299 (see also section 3.2.1 of the OAuth 2 spec)

{
  "error": "[error_code]",
  "error_description": "Detailed message here"
}

Requesting Data

See also section 5.1.1 of the OAuth 2 spec.

Once you have your access_token, you can request data by placing it in the Authorization header for each request:

Authorization: OAuth [access_token]
Note that, when using OAuth 2, all requests must be made over HTTPS.

Refreshing Expired Sessions

Access tokens expire after 24 hours, yet it would be undesirable to have to redirect end users to the OAuth 2 authorization flow once a day. The refresh flow is a remedy to this.

Sample Session Expired Response Header and Body

HTTP/1.1 401 Unauthorized
WWW-Authenticate: OAuth realm='Flexmls API', error='expired_token'
{
  "D": {
    "Success": false,
    "Message": "Session token has expired",
    "Code": 1020
  }
}
To refresh the access token, POST the following JSON data to the API's OAuth Access Token service at https://sparkapi.com/v1/oauth2/grant using HTTPS:

Sample POST Request Body

{
  "client_id": "[client_id]",
  "client_secret":  "[client_secret]",
  "grant_type": "refresh_token",
  "refresh_token": "[refresh_token]",
  "redirect_uri": "[redirect_uri]"
}
Parameter Description
client_id This is your OAuth client ID provided by FBS.
client_secret This is your OAuth client secret provided by FBS.
grant_type Set this to refresh_token .
refresh_token This is the value of the refresh token obtained from the initial access token grant.
redirect_uri The domain must match that which is registered with FBS, although a redirection does not occur when refreshing an access token.

Sample Successful Response Body: HTTP status 200 (see also section 3.1 of the OAuth 2 spec)

{
  "access_token": "example_new_access_token",
  "refresh_token": "example_new_refresh_token",
  "expires_in":  86400
}

Sample Failed Response Body: HTTP status > 299 (see also section 3.2.1 of the OAuth 2 spec)

{
  "error": "[error_code]",
  "error_description": "Detailed message here"
}
